Decoding Drivetrain Talk: Driveshafts, Halfshafts, U-Joints, and More
When you’re talking about the undercarriage, you hear a lot of different names for the same parts.
A customer comes into the shop complaining about a clunking noise, and depending on where they’re from or who they’ve been talking to, they might tell you they need a new propeller shaft, a halfshaft, or a CV shaft – and they’re likely all the same part.
As automotive professionals, we know that explaining driveline dynamics to customers – and even getting on the same page with newer techs – can feel like speaking a different language. Let’s cut through the confusion and break down exactly what’s happening under the chassis.
The Evolution Of The Driveshaft
Back in the day, before front-wheel-drive (FWD) and independent rear suspensions ruled the road, things were simple. Most drivetrains consisted of a transmission, a solid rear axle, and a single driveshaft. This standard longitudinal driveshaft was essentially a sturdy tube with universal joints (U-joints) on each end, allowing the shaft to flex as the suspension traveled over bumps.
But as automotive engineering evolved, so did the terminology.
When four-wheel-drive (4WD) became more common, we saw the introduction of a secondary, shorter driveshaft connecting the transfer case to the front differential. Then came independent rear suspensions. In addition to a single long shaft running front-to-back, automakers began using lateral shafts to transfer power side-to-side from the rear diff to each wheel. Because you needed two of them (each accounts for half of the total axle width), the industry dubbed them ‘halfshafts.’

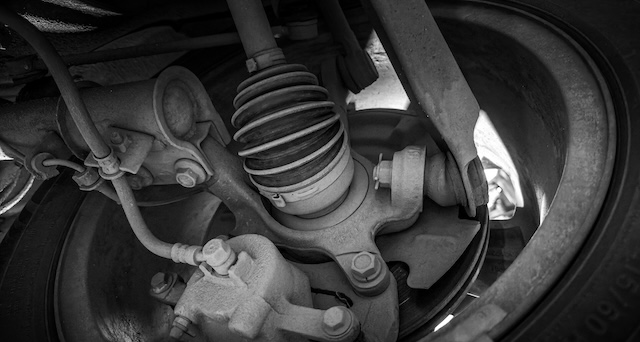

When FWD took over the mainstream market, U-joints couldn’t handle the extreme steering and suspension angles required. Enter the Constant Velocity (CV) joint. Today, FWD halfshafts are almost universally known as ‘CV shafts.’ And, you’ll hear some traditionalists or Asian import fans call the main front-to-back driveshaft a ‘propeller shaft’ (or prop shaft), while others just call everything a driveshaft.
Bottom line? When talking to a customer, it never hurts to ask a few clarifying questions to make sure you’re both diagnosing the same end of the car.

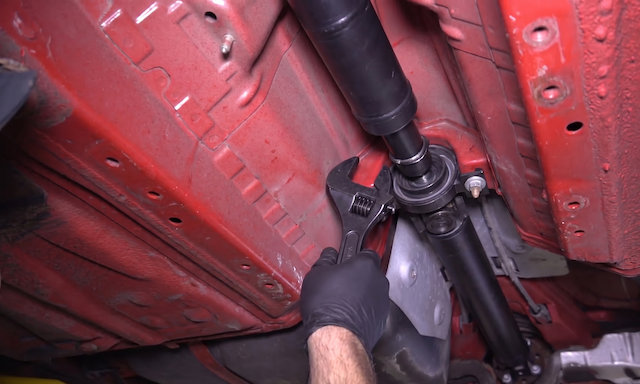

Keep It Simple: Anatomy Of A Standard Driveshaft
Even though a traditional longitudinal driveshaft looks like a basic steel or aluminum tube, it’s a highly critical, precision-balanced component.
During manufacturing, yokes, slip splines, or modern CV-hubs are welded to the ends of the cut tubing. From there, the joints are pressed in, and the entire assembly is rigorously balanced.
If you are working on a truck or van with a two- or three-piece driveshaft, remind your younger techs that these are balanced and keyed as a single unit.
Performance Applications And Torque Tubes
If you run a shop that caters to performance vehicles, the driveshaft takes on a whole new level of importance. Too much torque combined with high rotational mass can cause a stock driveshaft to twist, bind, or catastrophically fail.
If a U-joint snaps at the track or on the highway, the driveshaft can drop, dig into the asphalt, and pole-vault the car – or tear through the floorboards. This is why driveshaft loops are an absolute must for high-horsepower builds.
And for the history buffs (or Corvette specialists), we can’t forget the torque tube. Popular in early American auto production and still used in modern high-end sports cars to balance weight distribution, this setup encloses a solid inner driveshaft inside a rigid tube bolted directly between the transmission and the rear differential.
High-Quality Chassis Components Make Or Break The Job
Whether you are rebuilding a custom two-piece prop shaft or swapping out a worn-out CV axle, the driveline’s lifespan depends entirely on the joints and bearings that support it.
When you replace U-joints, always inspect the yoke. If the U-joint caps fit loosely into the yoke ears, the yoke is stretched or damaged, and the whole shaft needs replacing. But more importantly, if you install cheap, subpar U-joints, you’re practically guaranteeing a premature failure.
Remember that your rep is on the line with every repair. GMB’s OE-quality U-joints are designed to withstand heavy loads, prevent vibration, and go the distance. Don’t risk a comeback on a heavy-duty towing or hauling build – stock your shop with U-joints you can trust.
Driveline Parts: It’s All Connected
Similarly, driveline repairs rarely happen in a vacuum. If a customer brings in a FWD vehicle with a clicking CV shaft, there’s a high probability their wheel bearings have taken a beating, too. Every ounce of power transferred through that halfshaft relies on the wheel bearing and hub assembly to keep the wheel spinning smoothly and safely.
When you’re already in there pulling the axle nut and removing the shaft, it’s the perfect time to inspect the hub. Replacing a worn hub assembly at the same time saves your customer future labor costs and ensures a complete, reliable repair. GMB’s hub assemblies are factory-tested and engineered for maximum durability, matching or exceeding original equipment specs so your customers can get back on the road with confidence.
U-Joints And Hub Assemblies From GMB
Drivetrain terminology might be a mixed bag of halfshafts, prop shafts, and torque tubes, but the goal of the repair is always the same: smooth, reliable power transfer.
Educate your customers on how their vehicle works, and insist on high-quality components like GMB U-joints and wheel bearings – you’ll build trust, increase your shop’s profitability, and keep those cars rolling smoothly for years to come.
